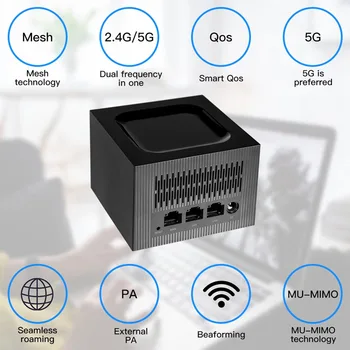

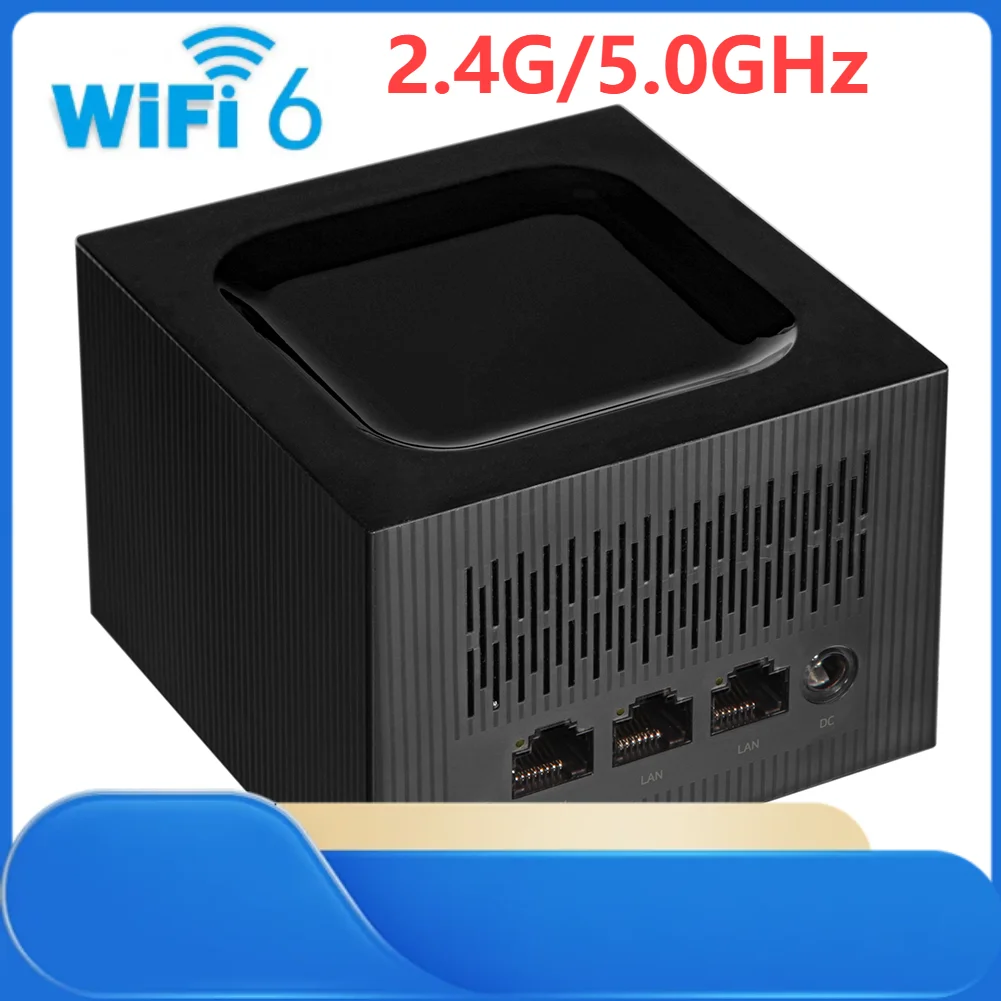

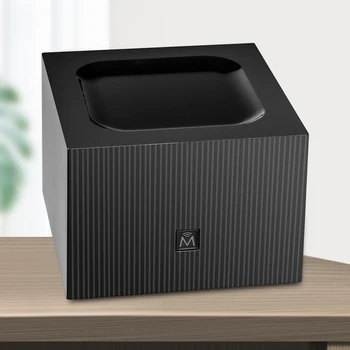

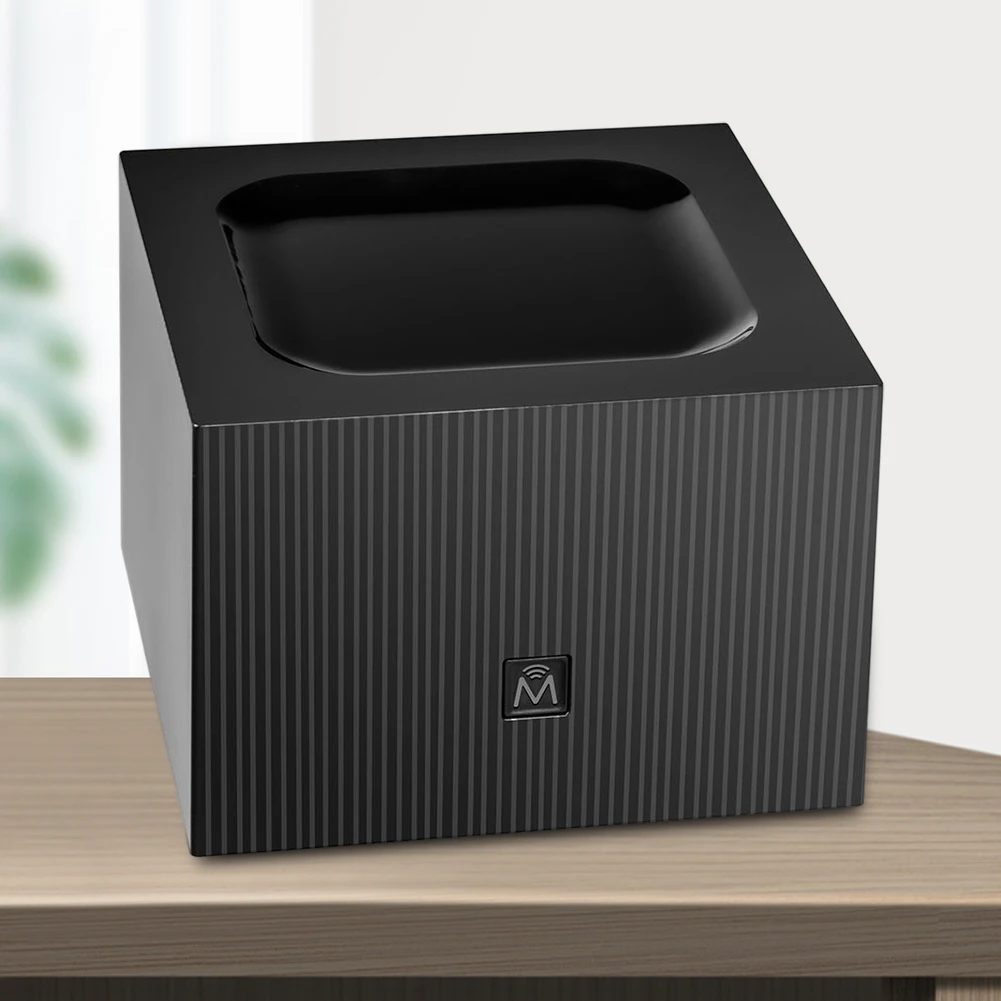

Smart Home Network Router AC1200M Mesh Router System Dual Band 2.4G/5.0GHz Internal Antennas Good Penetrability Strong Signal

Dual Band AC1200M Whole Home Mesh Wireless WiFi System 2.4G/5.0GHz Network Router Good Penetrability Easy Set Up
Feature:
1. Mesh Router: This is what we call a distributed router, or a sub parent router. Generally speaking, it is composed of two or three routers. If your home area is relatively large, it can be placed within a certain distance from your home to automatically form a network, share SSIDs, and seamlessly roam WIFI with full coverage.
2. Built-in 4 Antennas: Stronger signal, longer coverage, strong hardware configuration, and stronger wireless performance. Four high gain built-in antennas, scientific antenna layout, improved isolation between antennas, reduced interference, stronger signal, and wider coverage. Quick and user-friendly settings, convenient and efficient design in both Chinese and English, easy to understand files, easy to apply, and even easy to follow steps, allowing everyone to quickly get started.
3. Easy Installation: Automatic networking, which can transmit data to multiple devices simultaneously, greatly improving efficiency and increasing the number of devices. Integrating 2.4g and 5g WiFi together to share a single ssid allows for automatic selection of faster and more stable WiFi frequency bands based on terminal internet usage, without the need to manually switch frequency bands.
4. Smooth WiFi Network: It can automatically repair network faults to ensure high-speed and smooth WiFi network. The user interface supports free web software updates, and it is easy to create a mesh with one click through the mesh button. Generally compliant with IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, and IEEE 802.11b standards.
5. Mesh Network: The mesh router generates a mesh network in which different devices and access points can be mixed in a star like, tree like, series connected, and bus like manner. The advantage of doing so is that your device can automatically find the best device within this range and perform intelligent switching.Specification:
Model: WD-ME5 (100Mbps Ethernet port), WD-ME5G (Gigabit Ethernet port), WD-ME6G (wifi6MESH) (optional)
Power plug: EU or US (optional)
Product color: black
Product material: ABS material

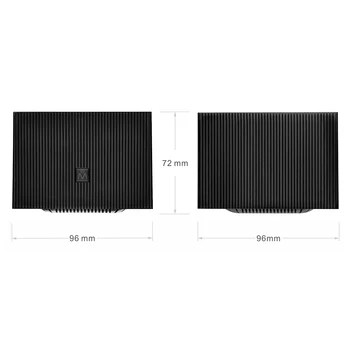

Size: about 96 * 96 * 72mm/3.77 * 3.77 * 2.83inch
Gross weight: 287gWD-ME5 (100Mbps Network port)
Chipset: Realtek 8197F+RTL8812
Interface: 3 * 10/100Mbps LAN
Wireless speed: Up to 1200Mbps
Frequency range: 2.4G&5.8G
Wireless transmission power: 20dBm (MAX EIRP)
Antenna: 4 * 5dBi
Working mode: Router/AP
Wireless security: 64/128 bits WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Temperature range: Operating: 0℃ to 40 ℃, Storage: -40 ℃ to 90 ℃
Humidity: Operating: 5% to 95% (non condensing), Storage: Max. 90% (non condensing)
Supported operating systems: Windows XP/Vista/Win 7/Win 8/Win8.1/Win10/Linux/Mac OSWD-ME5G (Gigabit Ethernet Port)
Chipset: Realtek 8367+RTL8197FS+8812BRH
Interface: 3 * 10/100/1000Mbps LAN
Wireless speed: Up to 1200Mbps
Frequency range: 2.4G&5.8G
Wireless transmission power: 20dBm (MAX EIRP)
Antenna: 4 * 5dBi
Working mode: Router/AP
Wireless security: 64/128 bits WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Temperature range: Operating: 0 ℃ to 40 ℃, Storage: -40 ℃ to 90 ℃
Humidity: Operating: 5% to 95% (non condensing), Storage: Max. 90% (non condensing)
Supported operating systems: Windows XP/Vista/Win 7/Win 8/Win8.1/Win10/Linux/Mac OSWD-ME6G(wifi6MESH)
Chipset: MTK 7621+MT7975+MT7905
Interface: 3 * 10/100/1000Mbps LAN
Wireless speed: Up to 1800Mbps
Frequency range: 2.4G&5.8G
Wireless transmission power: 20dBm (MAX EIRP)
Antenna: 4 * 5dBi
Working mode: Router/AP
Wireless security: 64/128 bits WEP, WPA/WPA2, WPA-PSK/WPA2-PSK WPA3-PSK (TKIP/AES)
Temperature range: Operating: 0 ℃ to 40 ℃, Storage: -40 ℃ to 90 ℃
Humidity: Operating: 5% to 95% (non condensing), Storage: Max. 90% (non condensing)
Supported operating systems: Windows XP/Vista/Win 7/Win 8/Win8.1/Win10/Linux/Mac OS Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Router body
1 x Network cable
1 x Power adapter
1 x Instruction manual
